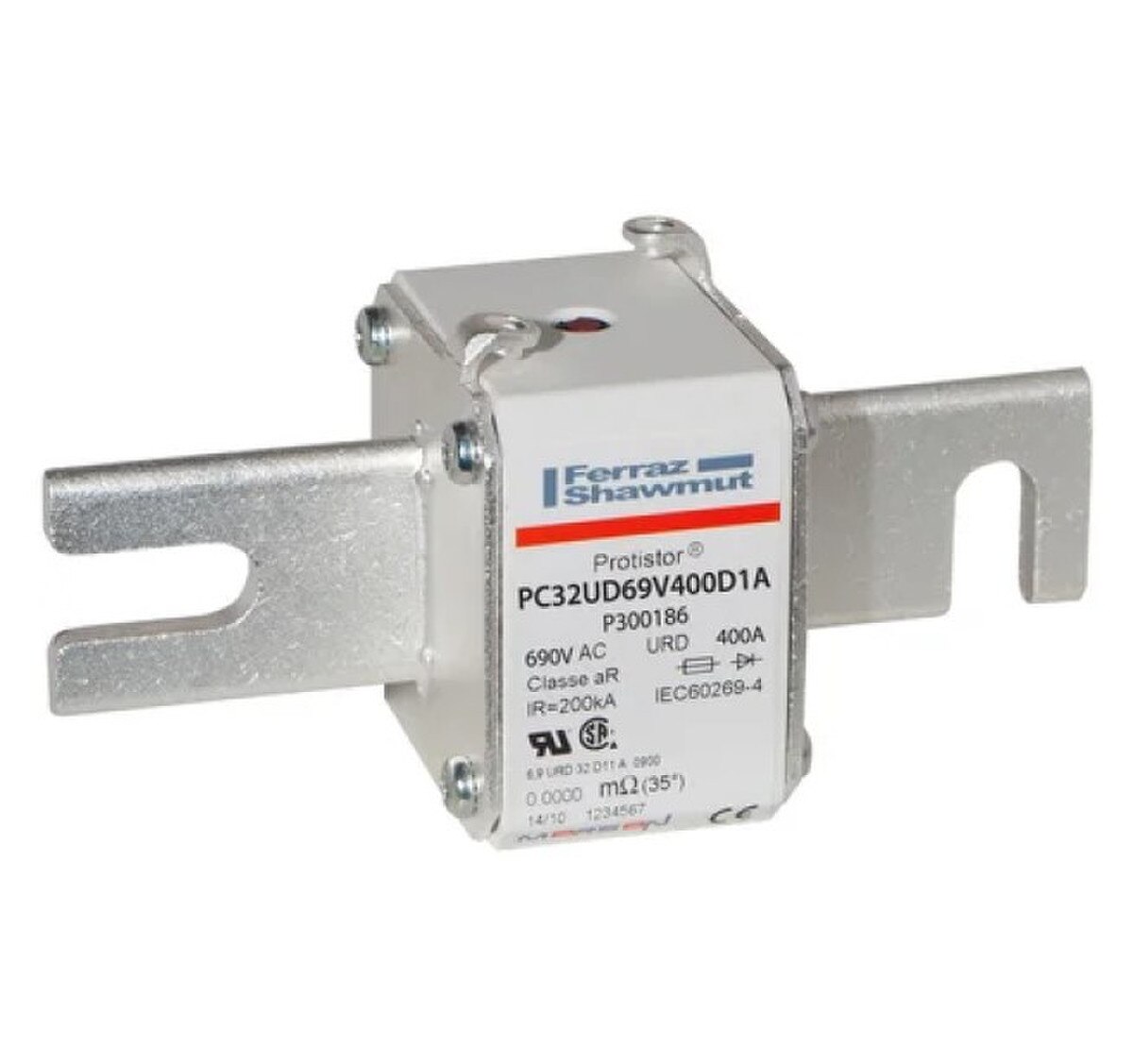

679185 - FERRAZ SHAWMUT SQUARE BODY PROTISTOR FUSE - 690V 400A 75W 200KA - P300186 PC32UD69V400D1A

MERSEN | Protistor® Square Body High-Speed Fuse Size 32 AR 690VAC IEC 700VAC UL 400A W/STRIKER DIN 110 BLADES | The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

FUSE - SQUARE BODY FERRAZ SHAWMUT PROTISTOR - 690V 400A 75W 200KA SIZE 32 AR TYPE DIN110 BLADE HI-SPEED SEMICONDUCTOR PROTECTION - P300186 PC32UD69V400D1A
