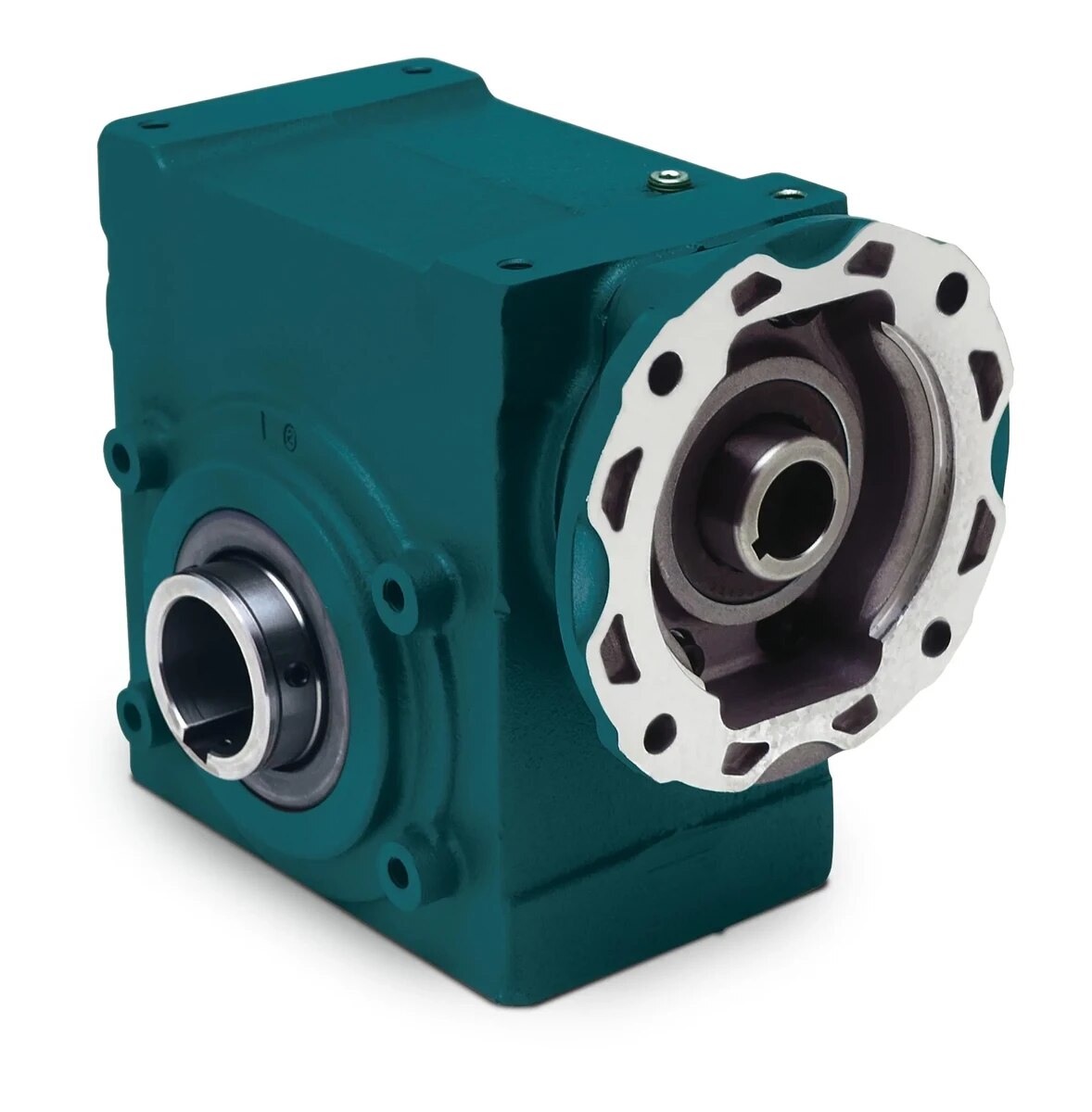

Dodge, 20Q12H14, 20Q12H14 TIGEAR-2 REDUCER

The TIGEAR-2 REDUCER offers a range of hollow sizes from 13 to 20. It is a worm speed reducer with a right-angle design and a nominal ratio of 12:1. This reducer features a 140TC frame, a worm gear mechanism, and a C-face quill input. The output shaft is hollow, allowing for direct mounting. The input shaft diameter is 0.876 inches, and the output bore diameter is 1.251 inches. The reducer is made of cast iron and has a torque capacity of 770 In-Lbs.
