W335465 - INTERLOCK SET, VEM4 MECHANICAL AND ELECTRICAL - 1SBN030111R1000 3471523130616
Details

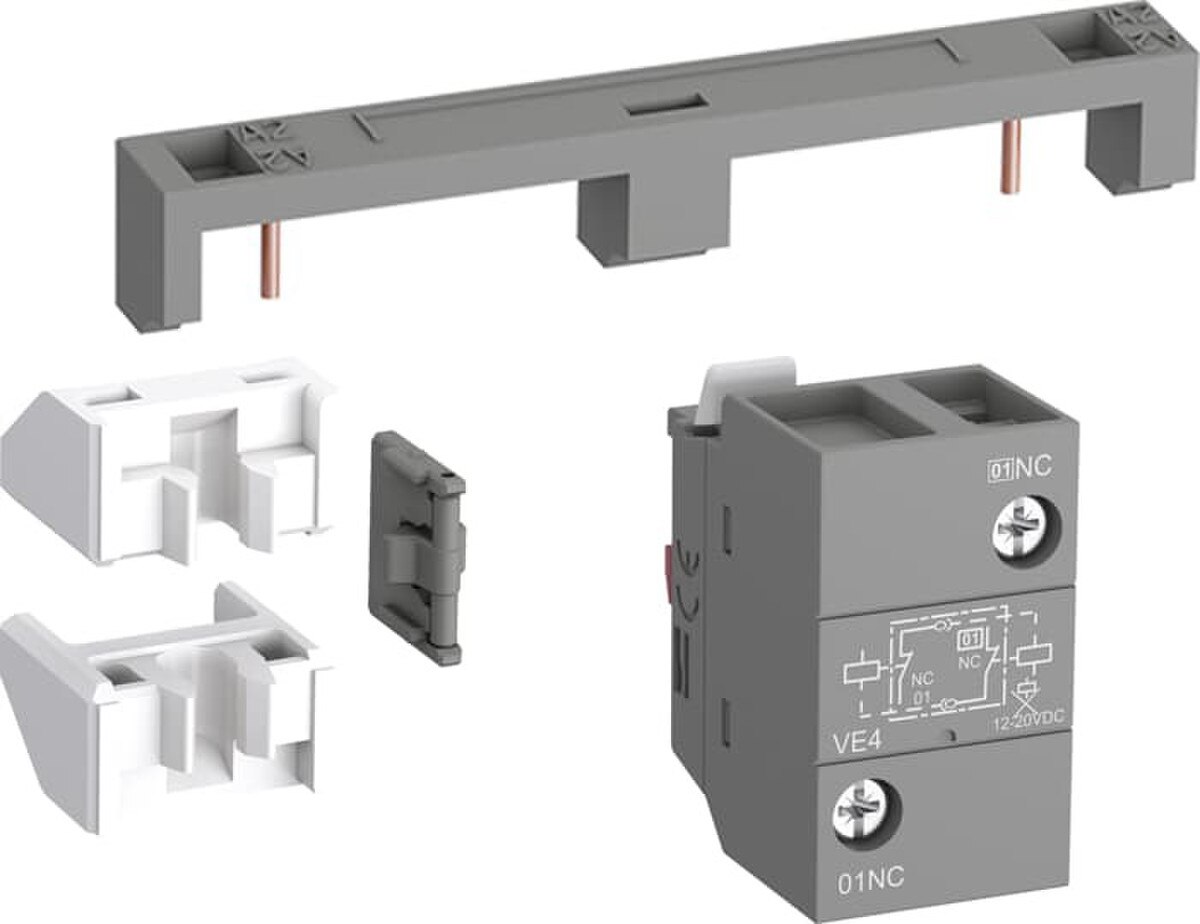

ABB - 1SBN030111R1000 3471523130616 - The VEM4 mechanical and electrical interlock set for the interlocking of two AF contactors. VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock block with A2-A2 connection. Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.
Specs
INTERLOCK SET, VEM4 MECHANICAL AND ELECTRICAL - 500V 2NC 2P 6kV 25MM W X 31.6MM L X 43MM H VEM4 INCLUDES: *VM4 MECHANICAL INTERLOCK UNIT *(2) FIXING CLIPS - BB4 + VE4 *ELECTRICAL INTERLOCK BLOCK W/A2-A2 CONNECTION - 1SBN030111R1000 3471523130616
