W352893 - COUPLING, ARPEX ARV-4 479 RETROFIT KIT - A5E44704365

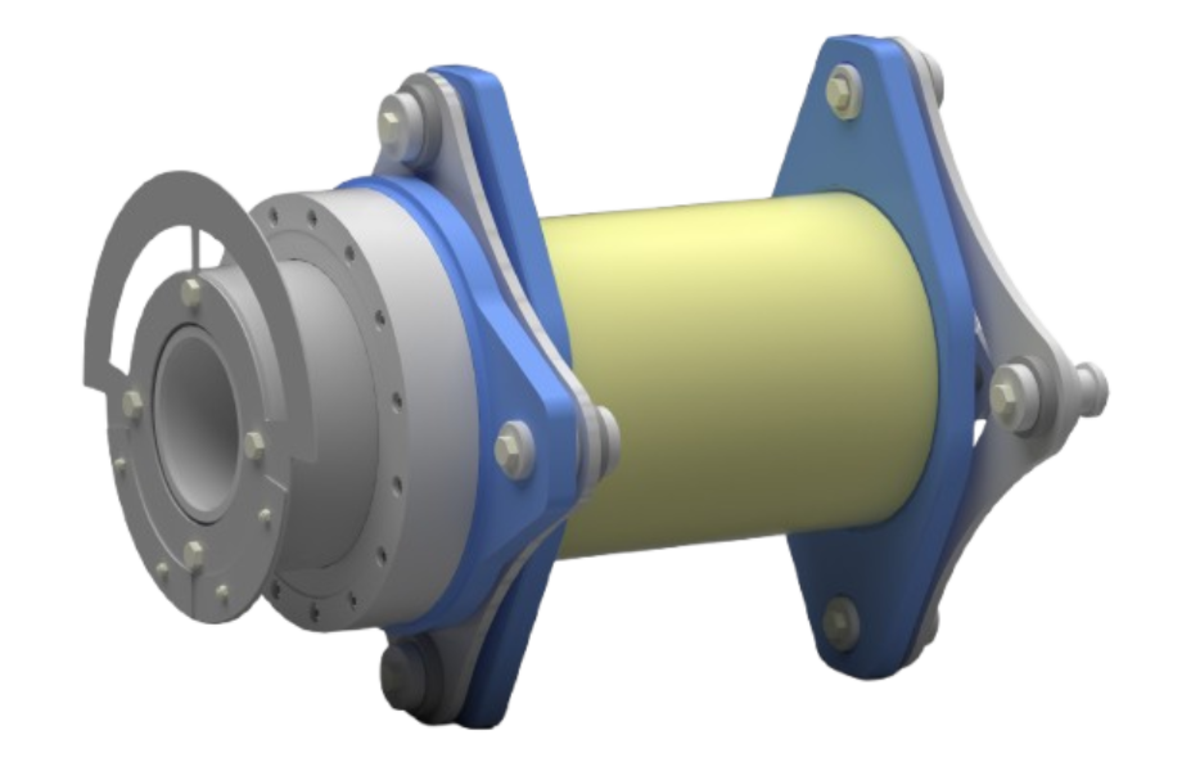

FLENDER | ARPEX ARV-4 479 RETROFIT KIT - A5E44704365 | ARPEX Wind Couplings: Reliable, Long-Lasting Performance for Wind Turbines - With over 30 years of experience in wind turbine coupling design and a full series portfolio, ARPEX delivers reliable, market-ready solutions for all turbine needs. Backed by continuous innovation and global, state-of-the-art manufacturing under the Flender and Winergy brands, ARPEX is trusted worldwide for turbine performance and durability. ARPEX ARV Wind Coupling - Installed between the gear unit and generator, the ARPEX ARV coupling efficiently transmits torque while compensating for misalignment. Designed for turbines up to 6MW, it allows radial assembly without moving surrounding components. Optimized stainless plate packs handle high torque, large misalignment, and deliver long service life with minimal restoring forces. An optional self-adjusting torque limiter adds drivetrain protection with no service needed after activation. ARPEX GIGA Wind Coupling - robust, wear-free disc coupling placed between the rotor shaft and gear unit to shield drivetrain components from bending and thrust loads. It enhances gear and bearing life while transmitting up to 12,000,000 Nm of torque. Designed for axial, radial, and angular misalignment, it suits all wind turbine concepts and is available in single- or double-joint configurations. Fast, Reliable Assembly with Conical Bolting - A patented conical bolting system secures plate packs to hub and spacer flanges, streamlining assembly and enabling quick disassembly with standard tools during turbine service. Proven over decades, this system ensures reliability and efficiency in the field.

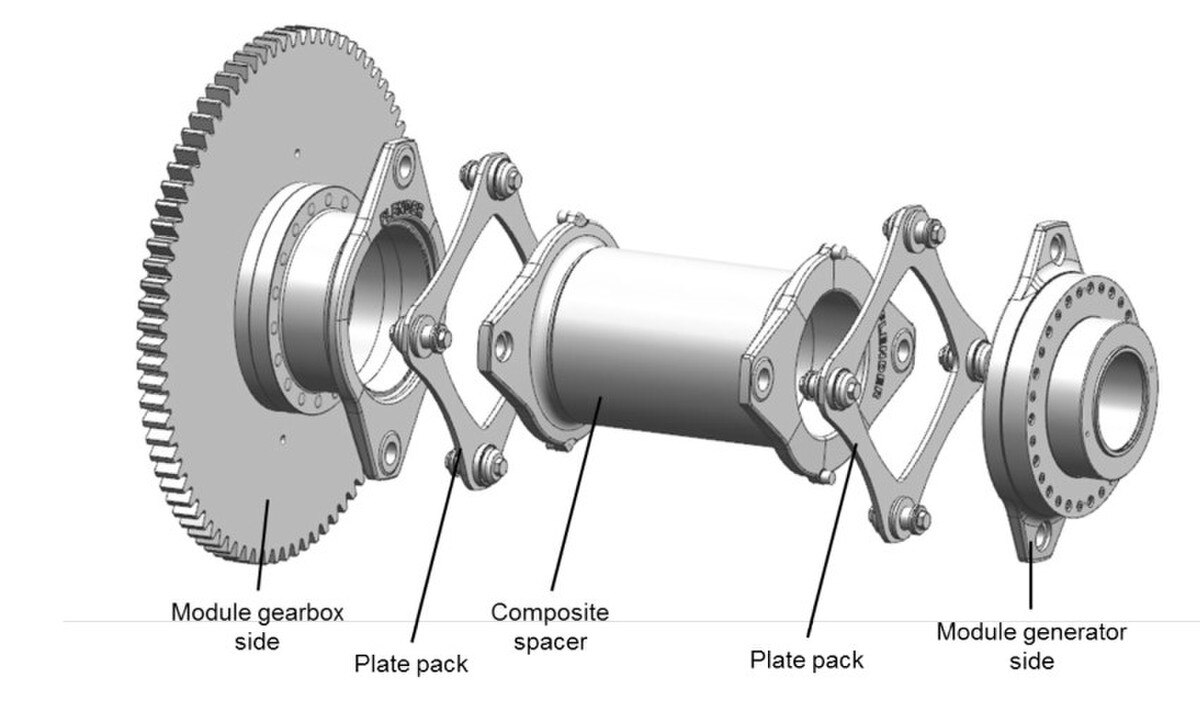

COUPLING, ARPEX ARV-4 479 RETROFIT KIT - A5E44704365 INCLUDES: * 1X GENERATOR HUB * 1X SPACER * 2X PLATE PACKS WITH CATCHER DEVICE • FLENDER RECOMMENDED FOR A5E34647136 COUPLING
