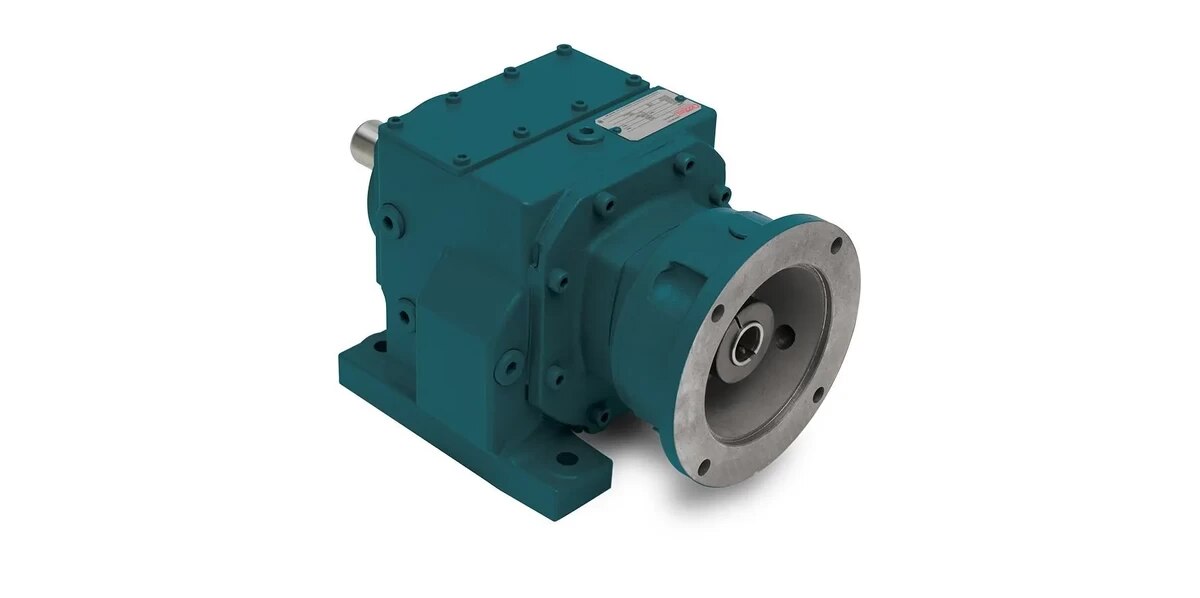

QUANTIS GEARBOX HB382CN56C 11.82A5SI1.000X1.97
-IN-LINE HELICAL
-NEMA 56C
-1750 RPM INPUT
-11.82:1 GEAR RATIO
-148 RPM OUTPUT SPEED
-859 IN-LB TORQUE
-416 OHL
-1.0 S.F.
-2 HP MAX INPUT
-FOOT MOUNTED
-CASE SIZE 38
-DOUBLE REDUCTION
-C-FACE CLAMP COLLAR
-A5 MOUNTING POSITION
-1.0 X 1.97" OUTPUT SHAFT DIAMETER
-APPROX. 37 LB.
