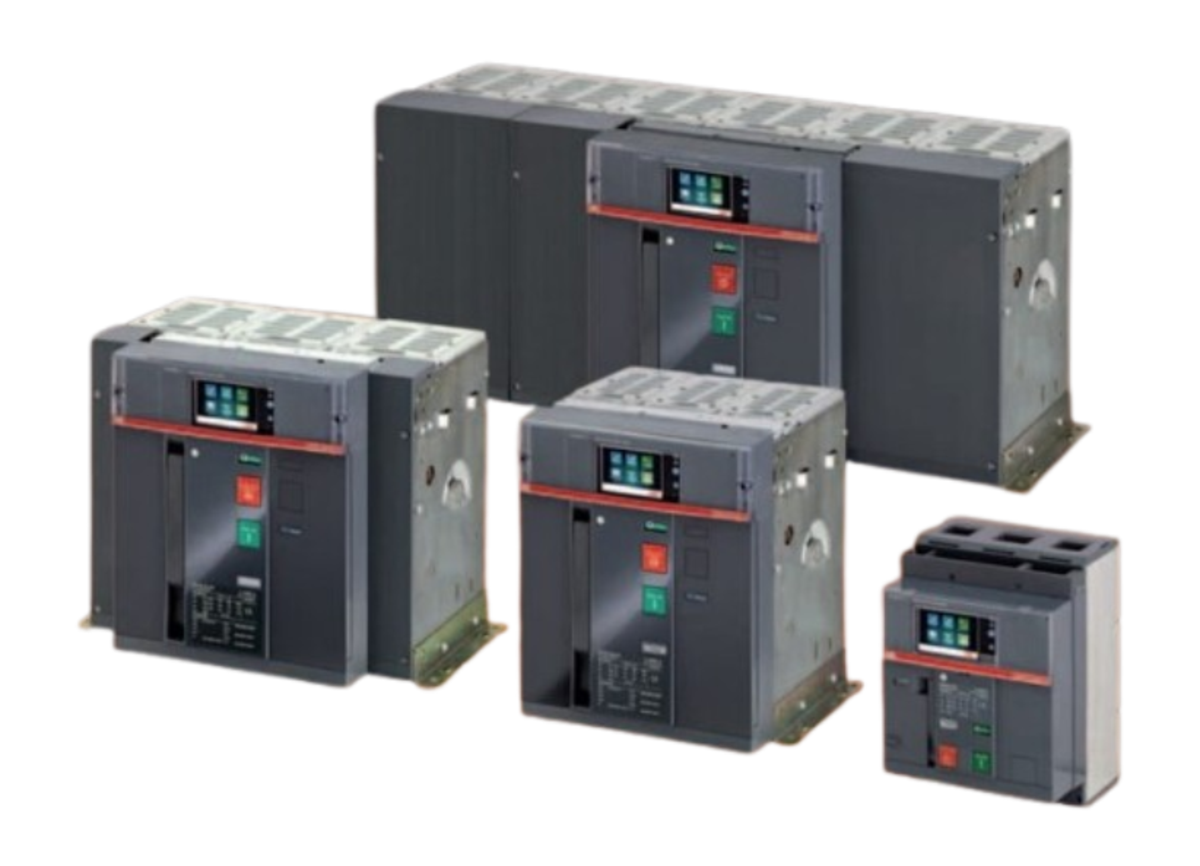

CIRCUIT BREAKER, LOW VOLTAGE - SACE EMAX2 RETROFIT FOR OBSOLETE NEW EMAX UL - ABB ZR-HBR-EMAX-F-E4.2 E3N-A200 PR122LSIG-IN2000A 3PF HR+AC.UL 1SDA063328R1
Consisting of:
1SDA078003R1 E4.2S-A (UL)2500 Ekip Touch LSIG 3p FHR
1SDA074267R1 RATING PLUG 2000 E2.2..E6.2 INST
1SDA073685R1 YC E1.2..E6.2-XT7M 110-120 VAC/DC
1SDA073698R1 YU E1.2..E6.2-XT7-XT7M 110-120 VAC/DC
1SDA073724R1 M E2.2...E6.2 100-130 V AC/DC
1SDA073781R1 MOC MECC.OPERATION COUNTER E2.2...E6.2
1SDA073803R1 PLC E2.2..E6.2 Padlocks in open D=4mm
1SDA074166R1 Ekip Com Actuator E1.2..E6.2
1SDA074172R1 Ekip Supply 110-240V AC/DC E1.2..E6.2
1SDA074167R1 Ekip Signaling 2K-1
Standard AUX 4Q (4 Form C) 400V E2.2…E6.2
Standard Bell Alarm 250V E2.2…E6.2
RF Upper Retrofitting Terminals HR E4.2 F Iu3200 3pcs<E3N/S/H - * MFG packaged & labeled separately as 1SDA105298R1
RF Lower Retrofitting Terminals HR E4.2 F Iu3200 3pcs<E3N/S/H - * MFG packaged & labeled separately as 1SDA105298R1
RF Installation and Hardware Kit F E2.2..E6.2 3p
Includes: Emax2 fixed mounted circuit breaker with factory retrofitting terminals, Installation instructions, installation hardware, and door modification template
(Door Modification is not required in all applications)
WARRANTY: 12 MONTHS FROM ABB SHIP DATE
EXTENDED WARRANTY AVAILABLE
Contact us for ORDER CANCELLATION SCHEDULE OF CHARGES. |
