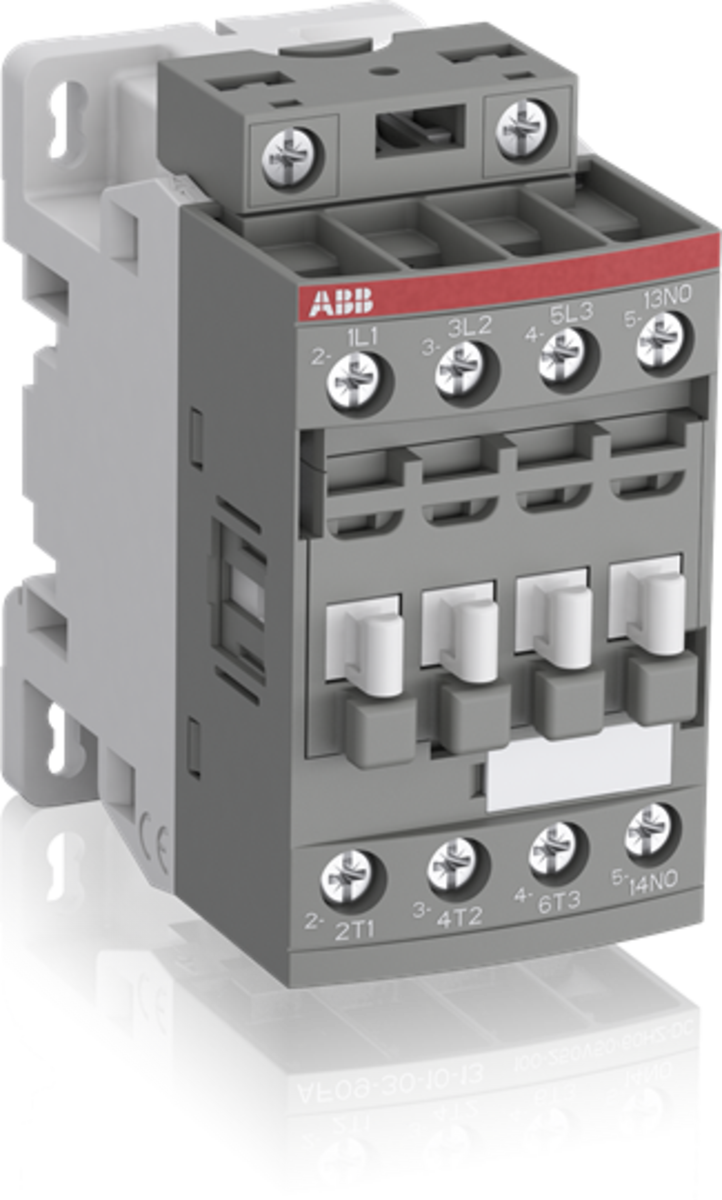

W356156 - CONTACTOR, AF16 SERIES - 1SBL177001R1310 AF16-30-10-13

ABB | AF16-30-10-13 ABB CONTACTORS | AF16 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF16 Series contactors include an electronic coil interface accepting a wide control voltage UC min UC max. Only four coils cover control voltages between 24-500 V 50/60 Hz or 20-500 VDC. Manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. With built-in surge protection and do not require additional surge suppressors. The AF16 Series 1-stack 3-pole contactors are of the block type design. Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated. A wide range of accessories is available. Contact Kurz for additional information.
