W356172 - BUSHING, O PLUS C II™ TRANSFORMER 34.5KV - 034Z3000AS

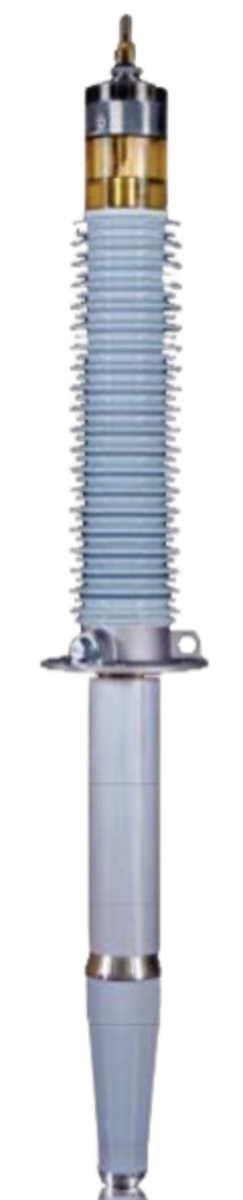

HITACHI | 34.5KV O PLUC C II™ TRANSFORMER BUSHING 034Z3000AS | Now available through the Kurz Wind Webstore, the Hitachi 034Z3000AS Type O Plus C II 34.5 kV Condenser Bushing is a robust, bottom-connected bushing engineered for high-current wind transformer systems. Rated at 3000 A with a 200 kV BIL, this bushing is built for demanding high-voltage applications and designed to meet IEEE C57.19.00, C57.19.01, C57.19.100, and IEEE 693 (High Seismic Level) standards. It delivers long-term reliability through center-clamped construction, a high-strength aluminum flange, prismatic oil sight bowl, and nitrogen gas expansion chamber. The 034Z3000AS is fully interchangeable with legacy 34.5 kV Type AB bushings, allowing seamless retrofit into wind turbine step-up transformers. Its porcelain air-side insulator exceeds heavy creep distance standards (≥44 mm/kVL-G), making it ideal for outdoor or coastal wind environments. Built to support thermal expansion, pressure/vacuum tested for sealing integrity, and equipped with a grounded test tap for condition monitoring, this bushing supports uninterrupted turbine operation. The 034Z3000AS is optimized for bottom connection and features IEEE-compliant terminal threading (2.00 – 12). For high-current wind applications demanding reliability, thermal stability, and field-proven quality, the Hitachi 034Z3000AS delivers performance and durability—stocked and supported by Kurz Wind, your trusted source for OEM-grade transformer components.
