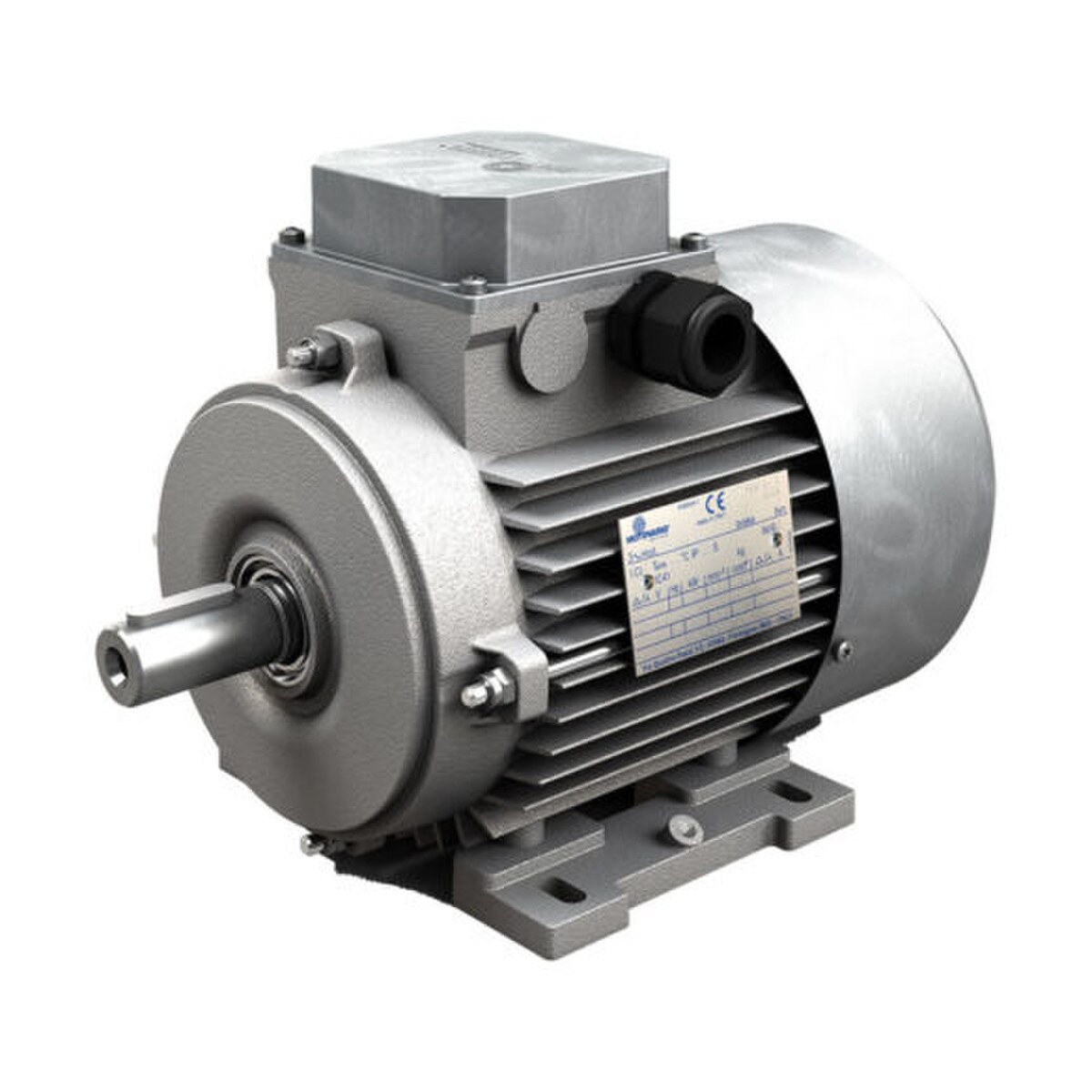

Motovario, 8604570, AC-MTR TT 0.75HP 4P 56C

AC-MTR TT 0.75HP 4P 56C AC-MTR TT 0.75HP 4P 56C AC Motor, 9 Lead, Model: T80A-4 0.75HP (0.55kW), 4 Pole 208-230/460V @ 60Hz, 3 Phase @230V FLA 2.62A - @460V FLA 1.31A Insulation Class F, IP 55, S1 Output: Flange NEMA 56C Front end bell with oil seal 20x34x7 Back end bell with oil seal 20x34x7 TEFC - Totally Enclosed Fan Cooled - S1 DutyMinimum service factor: 1.15 Insulation between Windings for Inverter DutyMotor Winding 9 lead w/ 9 Post Terminal BlockCE CSA CUS Approved Metal Conduit Box: Motovario Name Plate *Opposite sides 4 knock outs on terminal box,
